Subgraph Check Extensions

Validate schema changes before deploying them to production on your own premises.

A subgraph check extension allows you to validate if a proposed schema change will produce any error before shipping it to production with your own validator.

How it works

When you have enabled the subgraph check extension for a namespace, everytime a check is performed against a graph that belongs to said namespace, we send a request to the configured endpoint with information about the and allow you to overwrite the lint issues or return an error which would fail

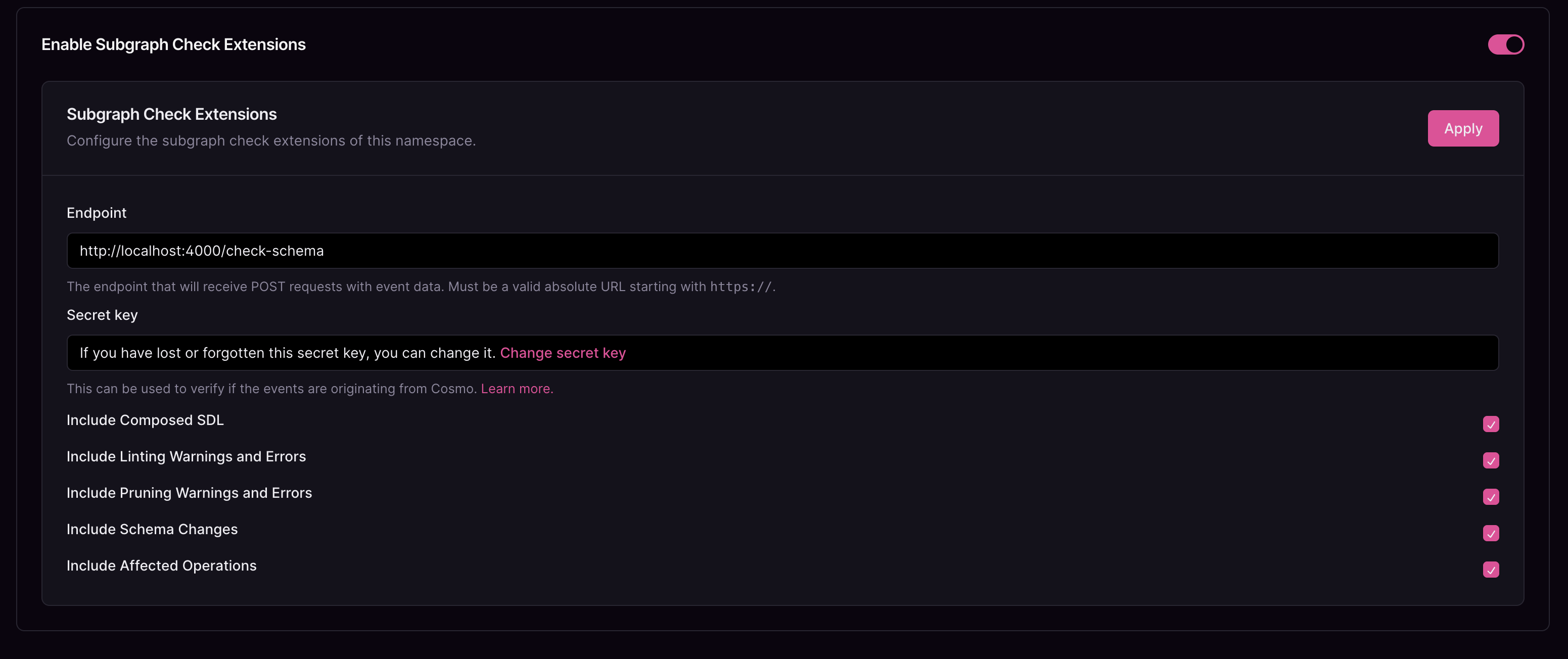

Configuration

Subgraph Check Extensions configuration

Option	Description
Endpoint	The URL to which each request is sent. This endpoint must be accessible from Cosmo.
Secret Key	A value used to generate the request signature when sending data to the configured endpoint. This signature helps verify that the request originates from Cosmo and has not been altered.
Include Composed SDL	When enabled, both the previous and current SDL (Schema Definition Language) versions are sent to your service.
Include Lint Warnings and Errors	When enabled, all detected lint issues are sent to your service. These issues are evaluated using the Linter Rules.
Include Graph Pruning Warnings and Errors	When enabled, all detected graph pruning issues are sent to your service. For more information, see Graph Pruning.
Include Schema Changes	When enabled, details of schema changes are included in the data sent to your service.
Include Affected Operations	When enabled, information about affected operations is included in the data sent to your service.

Verification

To ensure the payload data is coming from a trusted source and hasn’t been tampered with during transit, we employ HMAC signatures. When setting up the Subgraph Check Extension for a namespace, you can provide a secret key. This secret key is used to compute a signature that is sent along with each request.

The header containing this signature is X-Cosmo-Signature-256.

Verification Example

To verify the request, you need to compute the HMAC signature on your server and compare it to the signature in the X-Cosmo-Signature-256 header.

Here’s an example in Node.js:

import crypto from 'crypto';

function verifySignature(body, receivedSignature, secret) {
  const computedSignature = crypto
    .createHmac('sha256', secret)
    .update(body)
    .digest('hex');

  return computedSignature === receivedSignature;
}

// Usage:
const isVerified = verifySignature(JSON.stringify(req.body), req.headers['x-cosmo-signature-256'], YOUR_SECRET);

Handler Example

For this example we are using fastify and tsx to run the local server on port 4000. Before running any check, we need to configure the check extension to point to our local server and set the secret key. For this example, we are using the following values:

• Endpoint: http://localhost:4000/check-schema
• Secret key: ...

server.ts

import Fastify, { type FastifyInstance } from 'fastify'

import { SubgraphCheckExtensionPayload, SubgraphCheckExtensionReply } from './types'
import { verifySignature } from './utils'

const YOUR_SECRET = '...'
const server: FastifyInstance = Fastify({ logger: true })

server.post<{
  Body: SubgraphCheckExtensionPayload,
  Reply: SubgraphCheckExtensionReply
}>(
  '/check-schema',
  {
    config: { rawBody: true }
  },
  async (req, res) => {
  if (!req.body) {
    res.code(400)
    return { errorMessage: 'Bad request' }
  }

  const { body } = req
  const cosmoSignature = req.headers['x-cosmo-signature-256']
  if (!verifySignature(body, cosmoSignature, YOUR_SECRET)) {
    res.code(400)
    return { errorMessage: 'Bad request' }
  }

  // We can run checks conditionally
  if (body.namespace.name !== 'default' || body.subgraph?.name !== 'family') {
    // We only want to overwrite the lint issues for the subgraph `family` on the namespace `default`
    res.code(204)
    return
  }

  return {
    overwrite: {
      lintIssues: [
        {
          lintRuleType: 'TYPE_SUFFIX',
          severity: 1,
          message: 'Type names should use the prefix `Type`',
          issueLocation: {
            line: 9,
            column: 6,
            endLine: 9,
            endColumn: 11,
          },
        },
      ],
    },
  }
})

const start = async () => {
  try {
    await server.listen({ port: 4000 })

    const address = server.server.address()
    const port = typeof address === 'string' ? address : address?.port
  } catch (err) {
    server.log.error(err)
    process.exit(1)
  }
}

start()
